Product Certificate

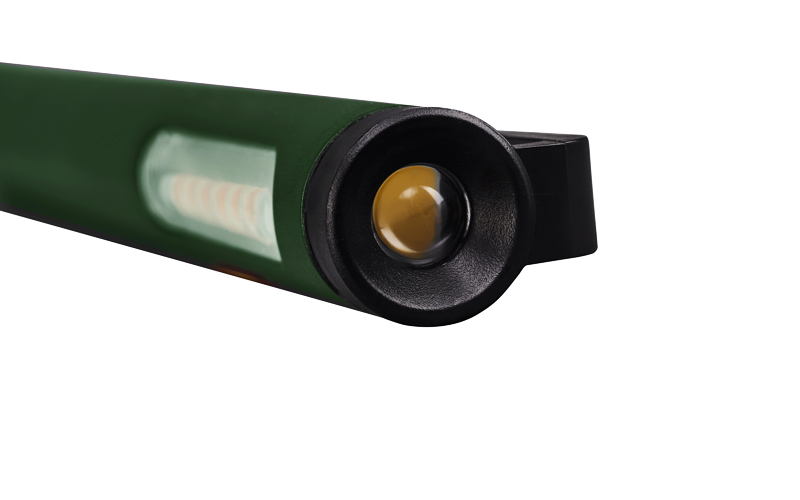

Product Parameter
| Art. number |
P01DP-N03 |
| Power source |
6 x SMD (main) 1x SMD(torch) |
| Rated power (W) |
0.6W(main) 0.4W(torch) |
| Luminous flux(±10%) |
130lm(main), 50lm (torch) |
| Color temperature |
5700K |
| Color rendering index |
80 |
| Bean angle |
100°(main) 20°(torch) |
| Battery |
3pcs AAA |
| Operating time(approx.) |
Depends on battery |
| Charging time(approx.) |
N/A |
| Charging voltage DC (V) |
N/A |
| Charging current (A) |
N/A |
| Charging port |
N/A |
| Charging input voltage (V) |
N/A |
| Charger included |
N/A |
| Charger type |
N/A |

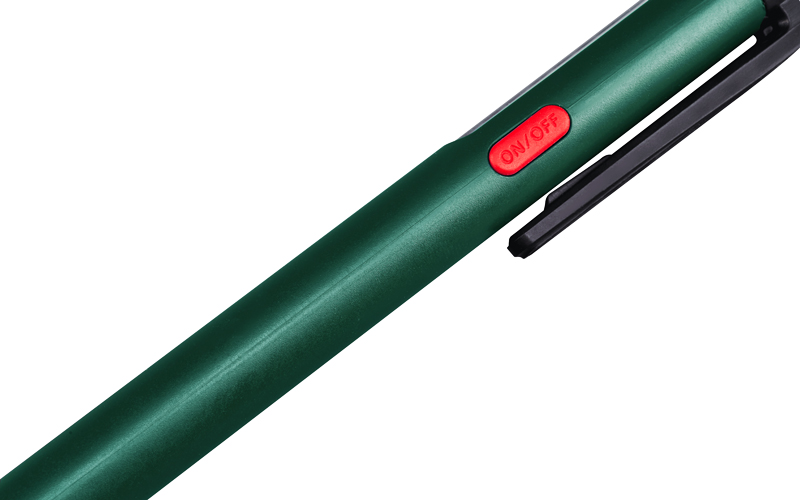

| Switch function |
Torch-main-off |
| Protection index |
IP20 |
| Impact resistance index |
IK07 |
| Service life |
25000 h |
| Operating temperature |
-10°C ~ 40°C |
|
Store temperature: |
-10°C ~ 50°C |

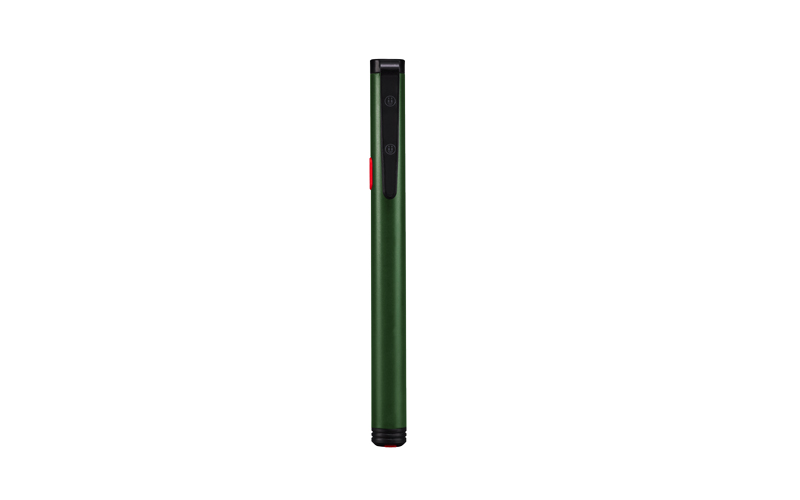

Poduct Details
| Art. number |
P01DP-N03 |
| Product type |

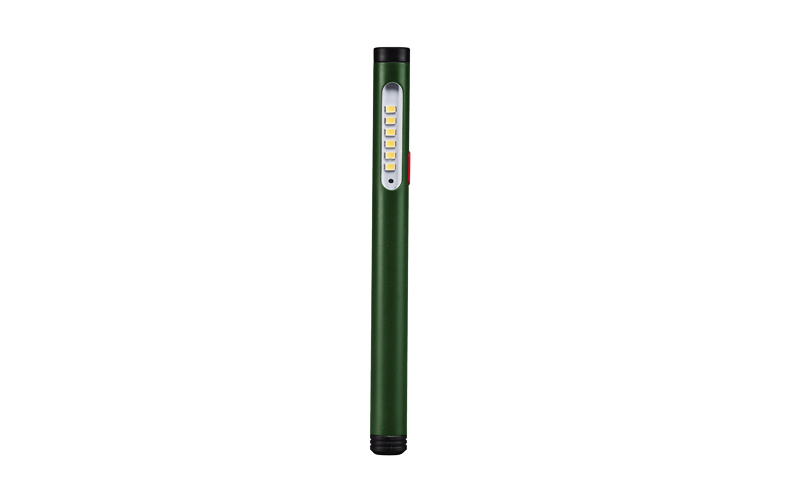

Pocket light |
| Body casing |
ABS+PMMA |
| Length (mm) |
15 |
| Width (mm) |
20 |
| Height (mm) |
160 |
| N.W. per lamp (g) |
20g |
| Accessory |
Lamp, manual |
| Packaging |
color box |
| Carton quantity |
50 in one |
Product Application/Key Feature
Conditions
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
Accesorry
N/A
FAQ
Q: Can be specified brands battery?
A: Yes, we have done in the same way with our other customers. They offer the contact way of their suppliers if they have, then we contact with the supplier for purchasing.
Q: Normally how long the duration time can be?
A: As there are kinds of AAA battery in the markets, hard to say how long it could be.
Q: Do you have rechargeable battery version?
A: Yes, you can refer to the recommendation, both P01DP-N02 and P01DP-NC01 are rechargeable. Our aluminum.
