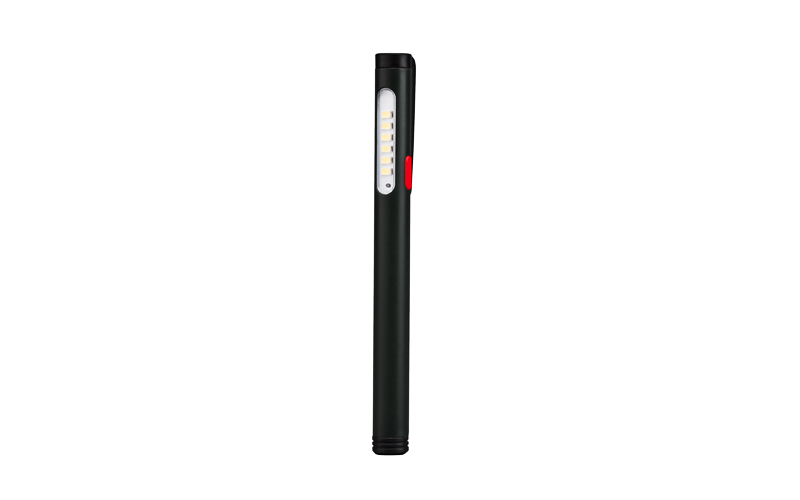

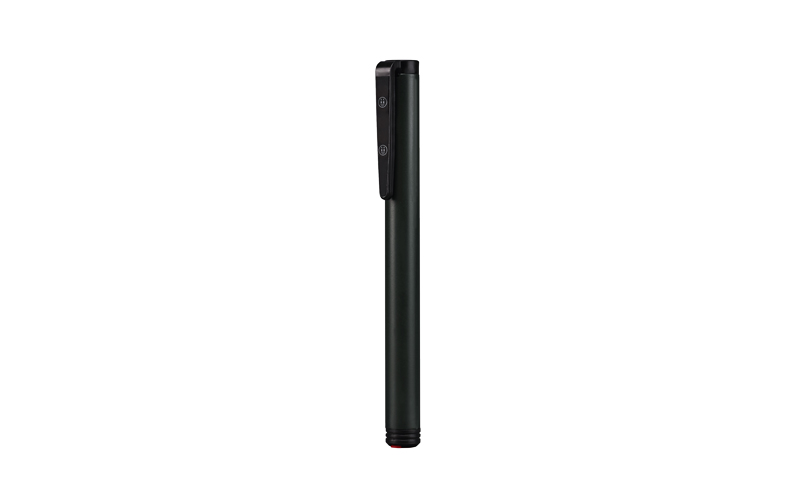

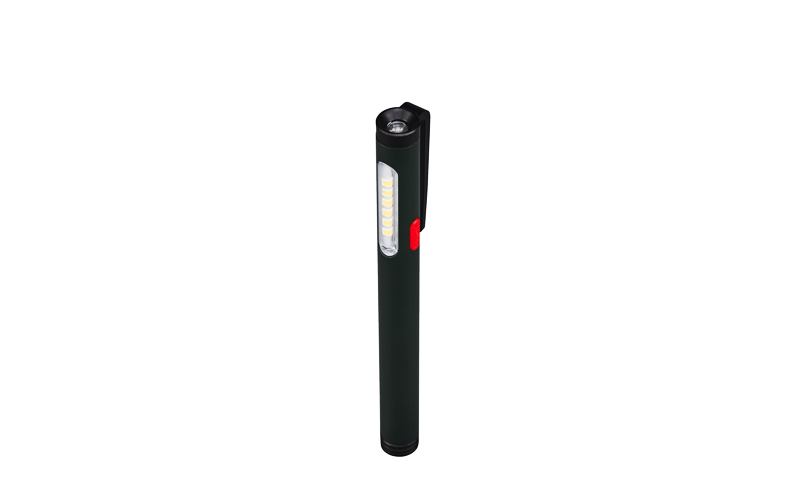

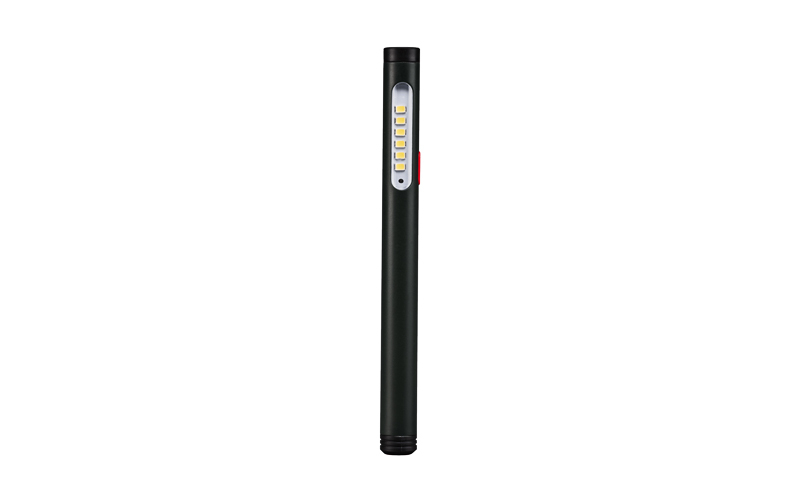

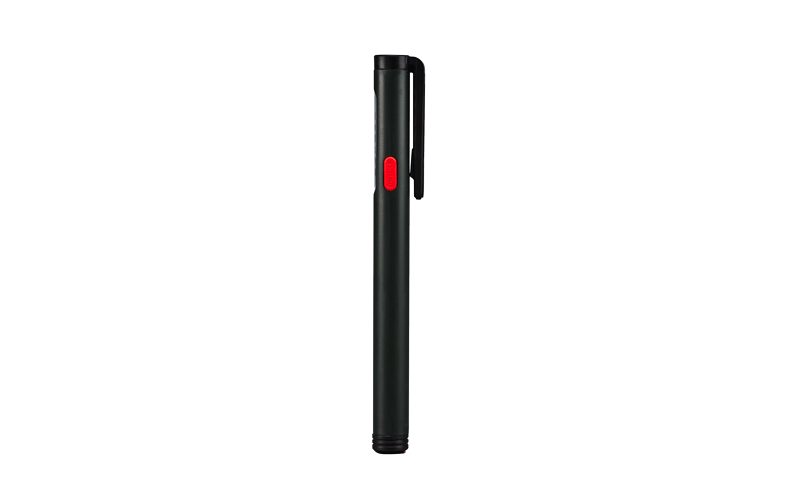

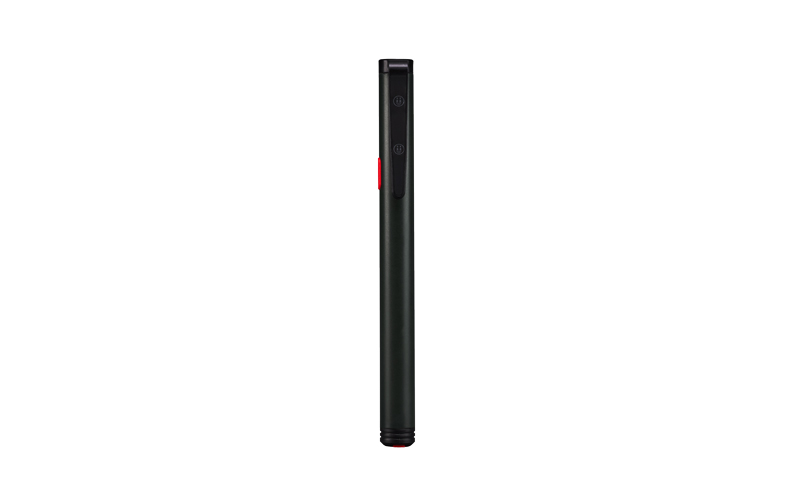

Small SMD Pen Light 150lm Rechargeable Flashlight

Short Description:

6+1 SMD makes the pen light has 2 lighting modes, 150 lumen for main light and 70 lumen for torch light. Side switch button is for the lighting patterns transformation. With a high quality lithium battery built-in, the duration time of main light is up to 2.5 hours. Red and green LED works as a charging indicator, when the cordless penlight is fully charged, it will be green. No worry about charging safety as protection board built-in the battery.

Thanks for the rear magnetic clip, the work light can be attached to pocket, belt, or pouch, or you can put it on the metal surface, when you need to free hands for operation.

The compact and slim design makes the pen light easy to carry and store, allows it to be used for lighting in lots of applications, like line repair, outdoor hiking, natural disaster emergency etc.


Product Detail

Product Tags

Product Certificate

product-description1

Product Parameter

Art. number

P01DP-NC01

Power source

COB (main) 1x SMD(torch)

Rated power (W)

1.5W(main) 0.9W(torch)

Luminous flux(±10%)

150lm (main), 70lm (torch)

Color temperature

5700K

Color rendering index

80

Bean angle

100°(main) 20°(torch)

Battery

10840 3.7V 600mAh

Operating time(approx.)

2.5H(main) 3.5H(torch)

Charging time(approx.)

2H

Charging voltage DC (V)

5V

Charging current (A)

1A

Charging port

TYPE-C

Charging input voltage (V)

100 ~ 240V AC 50/60Hz

Charger included

No

Charger type

EU/GB

Switch function

Torch-50%-100%-off

Protection index

IP20

Impact resistance index

IK07

Service life

25000 h

Operating temperature

-10°C ~ 40°C

Store temperature:

-10°C ~ 50°C

Poduct Details

Art. number

P01DP-NC01

Product type

Pen light

Body casing

ABS+PC

Length (mm)

14.7

Width (mm)

18.2

Height (mm)

159.8

N.W. per lamp (g)

37.5g

Accessory

Lamp, manual,1m USB -C cable

Packaging

color box

Carton quantity

48 in one

Product Application/Key Feature

Conditions

Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 3000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port

Accesorry

N/A

FAQ

Q: Do you has aluminum pen light?
A: Yes, you can check item P03DP-NC01.

Q: Is it OK to do the torch with laser light?
A: Yes, it is OK to do upon requirement.

Q: Where is the charging port?
A: Lamp bottom.
