Magnetic LED Hand Lamp For Inspection In Workshop

Short Description:

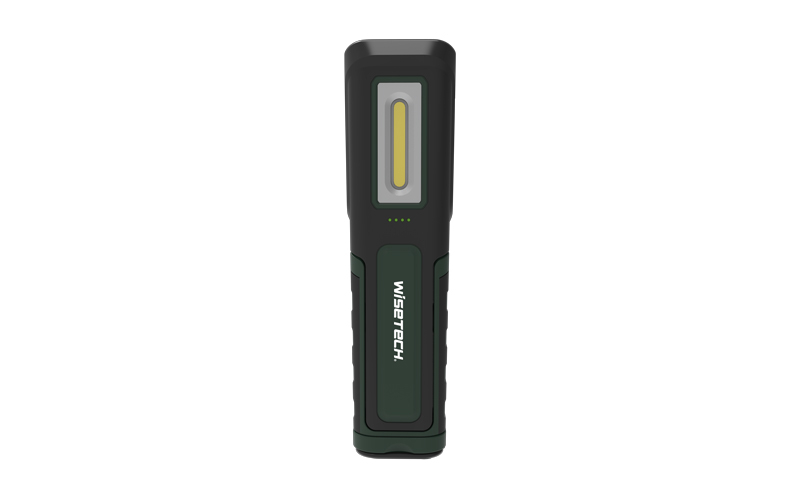

This hand lamp is designed to provide a suitable lighting tool for workers in different fields.T he whole lamp is made of high-strength plastic and covered with TPR, which is waterproof and dustproof, firm and anti-drop. A square plane is reserved on the front for printing the brand logo. Different color schemes are available to support customization.

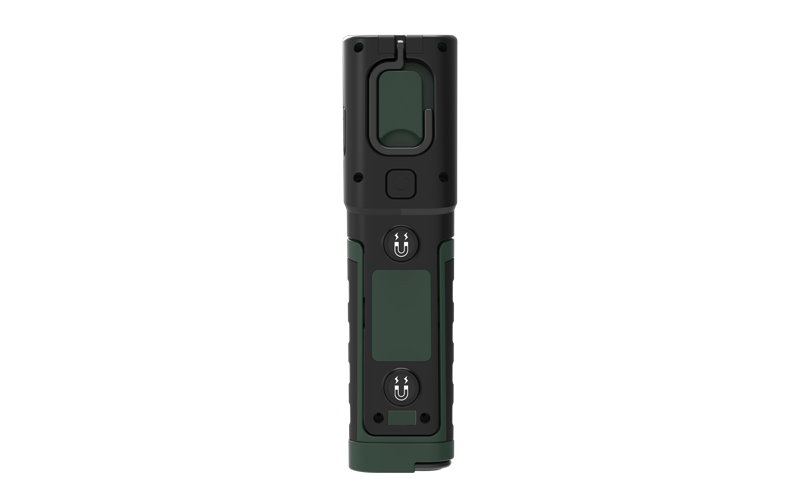

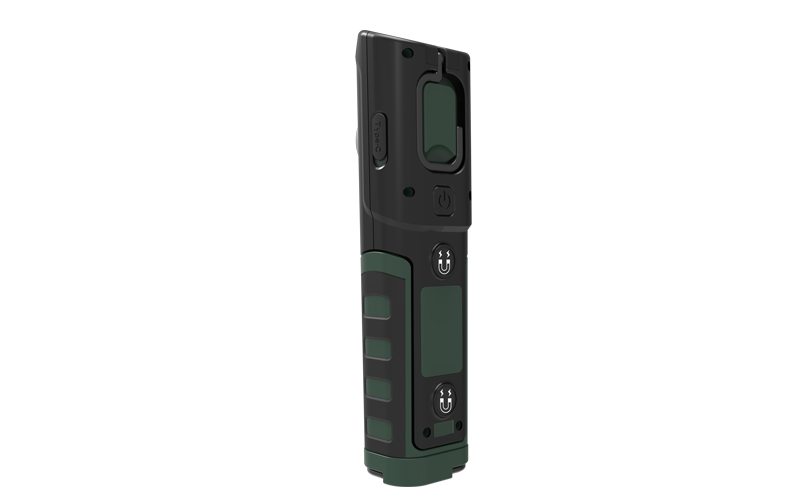

The dual light source design of strip COB and SMD provides convenience for lighting in different usage scenarios. The base integrates the three functions of 270° light body rotation at 9 positions, magnetic attachment and hang. The double magnets on the back provides the convenience of use at places where has a big metal plates.

Three green LEDs plus 1 red LED are used as charging indicator and battery meter. If there is only the red LED is on, it means the battery volume is getting low, pay attention to charge the lamp in time. While charging, the corresponding LED will flash. When fully charged, all 4 LEDs will be on.

Wireless charging version and magnetic fast charging series are optional. You can refer to our hand lamp series for more details.


Product Detail

Product Tags

Product Certificate

product-description1

Product Parameter

Art. number

P08PM-C03

Power source

COB (main)  1 x SMD(torch)

Rated power (W)

6W(main) 1W(torch)

Luminous flux(±10%)

100-600lm(main) 100lm(torch)

Color temperature

5700K

Color rendering index

80(main) 65(torch)

Bean angle

84°(main) 42°(torch)

Battery

18650 3.7V 2600mAh

Operating time(approx.)

2.5-10H(main) 10H(torch)

Charging time(approx.)

2.5H

Charging voltage DC (V)

5V

Charging current (A)

Max.2A

Charging port

TYPE-C

Charging input voltage (V)

100 ~ 240V AC 50/60Hz

Charger included

No

Charger type

EU/GB

Switch function

Torch-main-off,
Long press switch:main light 100lm-600lm

Protection index

IP65

Impact resistance index

IK08

Service life

25000 h

Operating temperature

-10°C ~ 40°C

Store temperature:

-10°C ~ 50°C

Poduct Details

Art. number

P08PM-C03

Product type

handlamp

Body casing

ABS+TRP+PC

Length (mm)

55

Width (mm)

40

Height (mm)

205

N.W. per lamp (g)

300g

Accessory

Lamp, manual,1m USB -C cable

Packaging

color box

Carton quantity

25 in one

Conditions

Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port

Accesorry

N/A

FAQ

Q: Whether the lamp will get hot when it light on for a few minutes?
A: Don’t worry, the temperature of accessible parts is suitable.

Q: If we don’t need the dimming function of front light, is it OK to do?
A: Yes, it is OK to make the chance.

Q: Does the battery have been protected from overcharge?
A: Yes, the battery has built-in protection board, it is safe.
