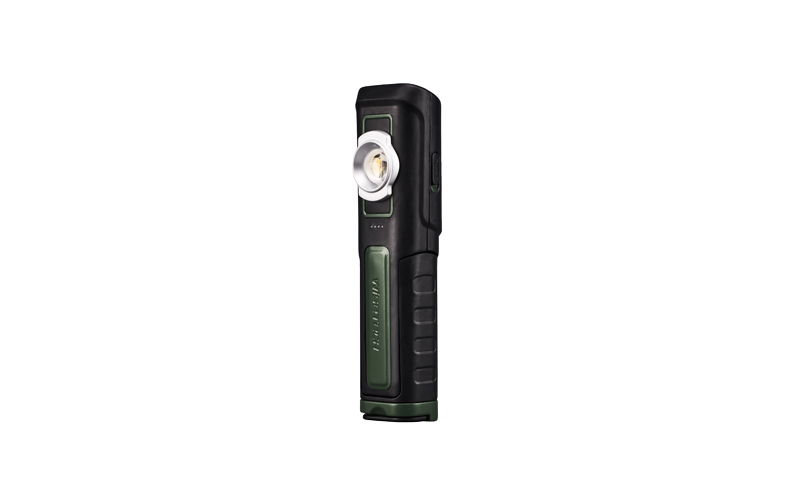

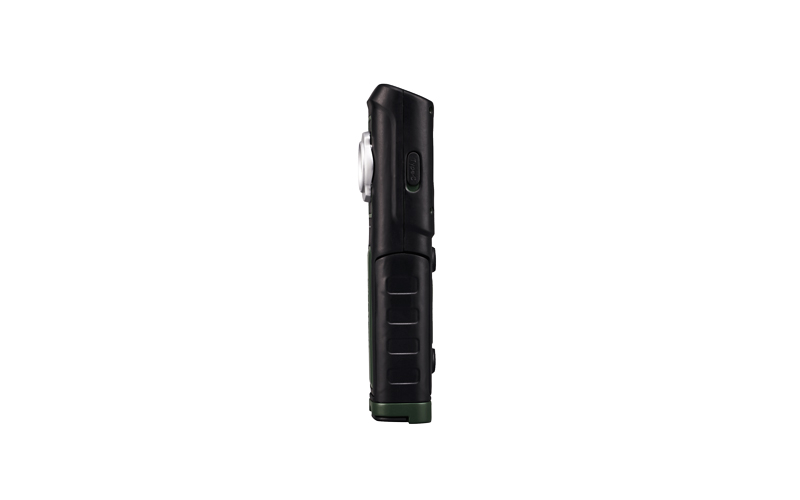

COB+SMD Magnetic Hand Lamp For Workshop, Household, Emergency Use

Short Description:

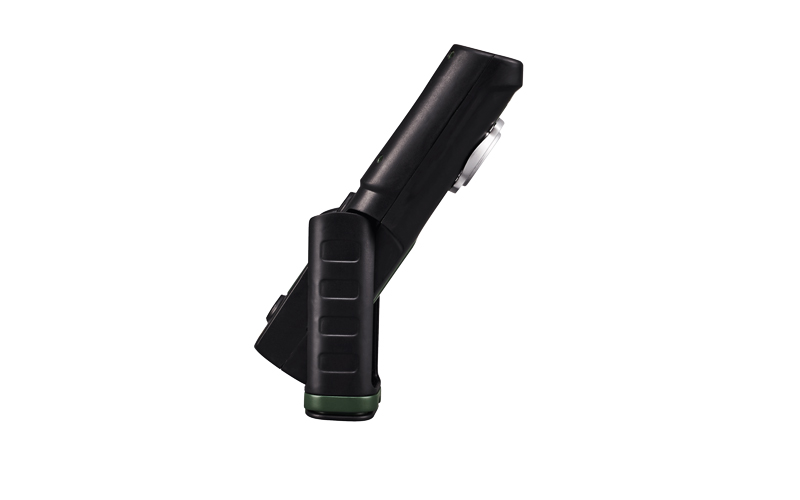

Engineering TPR coated shell makes the inspection lamp lightweight, strong and durable. 270 degrees adjustable bracket is ergonomic and supports 9 vertical angles of the lamp body.

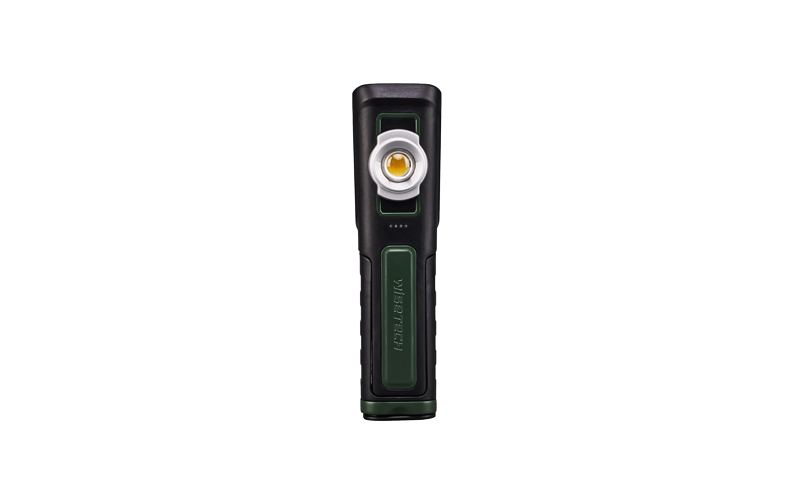

Dual light source design – Large circular COB with lens design on the front, focus and bright, luminous flux is up to 600 lumen, long pressing the switch for dimming from 100 to 600 lumen. Top SMD provides a 100 lumen, can be used as a small flashlight.

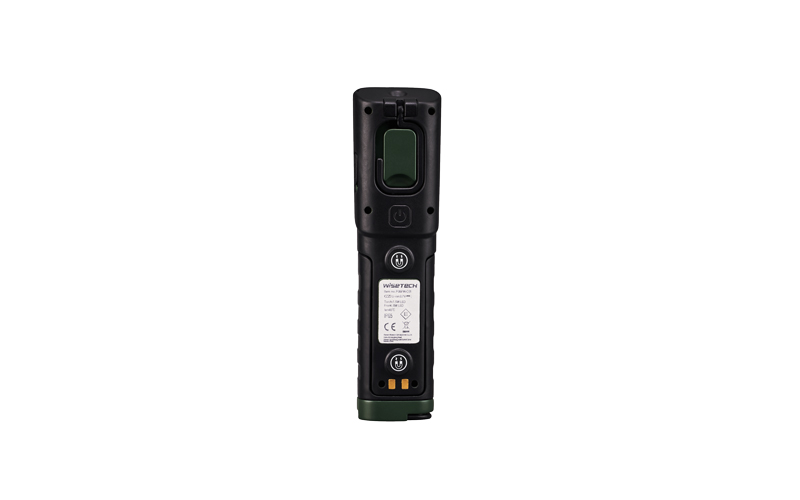

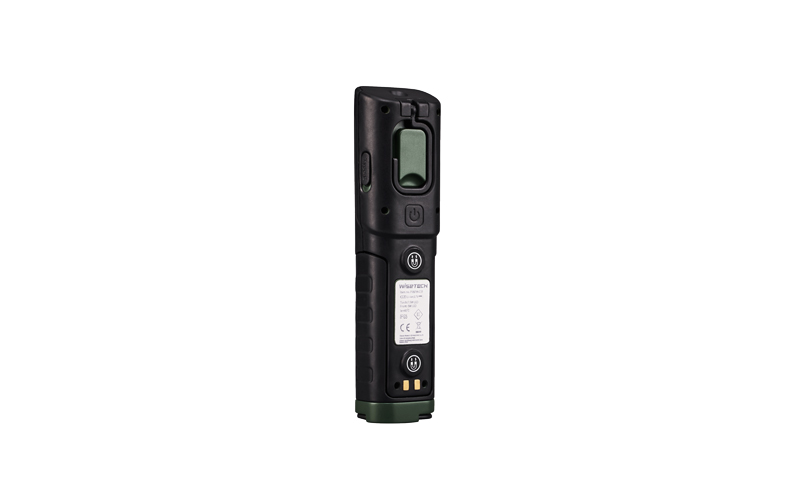

Besides the hook at rear top, there is a strong metal hook built-in the bottom, which allows the inspection lamp to be hung on in horizontal direction. The double magnets on the back and the magnets on the bottom provide the convenience of use at places where has metal plates.

4 LEDs in the front are both charging indicator and battery meter. 1 USB cable is supplied and the main charger input is 5V 2A(max.).

Send email to us

Product Detail

Product Tags

Product Certificate

Product Parameter

Art. number	P08PM-C02
Power source	COB (main) 1 x SMD(torch)
Rated power (W)	6W(main) 1W(torch)
Luminous flux(±10%)	100-600lm(main) 100lm(torch)
Color temperature	5700K
Color rendering index	80(main) 65(torch)
Bean angle	84°(main) 42°(torch)
Battery	18650 3.7V 2600mAh
Operating time(approx.)	2.5-10H(main) 10H(torch)
Charging time(approx.)	2.5H
Charging voltage DC (V)	5V
Charging current (A)	Max.2A
Charging port	TYPE-C
Charging input voltage (V)	100 ~ 240V AC 50/60Hz
Charger included	No
Charger type	EU/GB
Switch function	Torch-main-off, Long press switch：main light 100lm-600lm
Protection index	IP65
Impact resistance index	IK08
Service life	25000 h
Operating temperature	-10°C ~ 40°C
Store temperature:	-10°C ~ 50°C

Poduct Details

Art. number	P08PM-C02
Product type	handlamp
Body casing	ABS+TRP+PC
Length (mm)	55
Width (mm)	44
Height (mm)	205
N.W. per lamp (g)	310g
Accessory	Lamp, manual,1m USB -C cable
Packaging	color box
Carton quantity	25 in one

Conditions

Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port

Accesorry

N/A

FAQ

Q: How to tell if the battery is fully charged?
A: The 4 LEDs indicators at the front all light on.

Q: What is kind of charging port?
A: Type-C.

Q: Is there a wireless charging version of this look?
A： Yes, we have both wireless and fast charging versions. Can refer to the hand lamp series or contact with us for details. Thank you.
