Product Certificate
Product Parameter
| Art. number |
P01DP-NC01 |
| Power source |
COB (main) 1x SMD(torch) |
| Rated power (W) |
1.5W(main) 0.9W(torch) |
| Luminous flux(±10%) |
150lm (main), 70lm (torch) |
| Color temperature |
5700K |
| Color rendering index |
80 |
| Bean angle |
100°(main) 20°(torch) |
| Battery |
10840 3.7V 600mAh |
| Operating time(approx.) |
2.5H(main) 3.5H(torch) |
| Charging time(approx.) |
2H |
| Charging voltage DC (V) |
5V |
| Charging current (A) |
1A |
| Charging port |
TYPE-C |
| Charging input voltage (V) |
100 ~ 240V AC 50/60Hz |
| Charger included |
No |
| Charger type |
EU/GB |

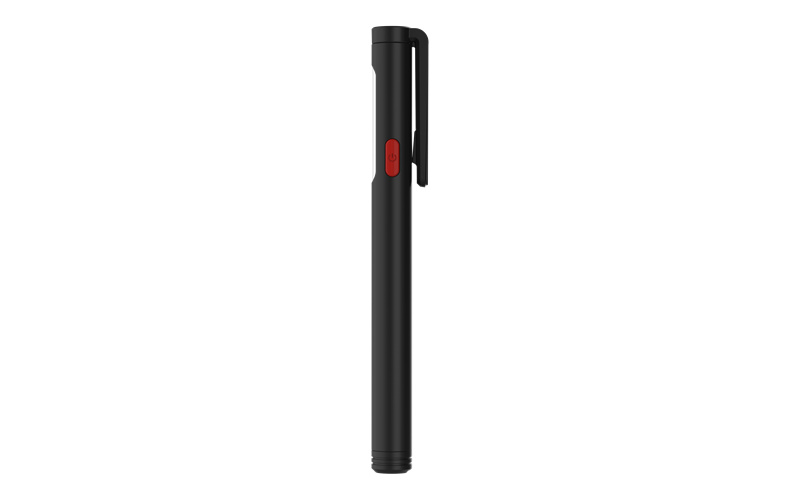

| Switch function |
Torch-50%-100%-off |
| Protection index |
IP20 |
| Impact resistance index |
IK07 |
| Service life |
25000 h |
| Operating temperature |
-10°C ~ 40°C |
|
Store temperature: |
-10°C ~ 50°C |
Poduct Details
| Art. number |
P01DP-NC01 |
| Product type |
Pen light |
| Body casing |
ABS+PC |
| Length (mm) |
14.7 |
| Width (mm) |
18.2 |
| Height (mm) |
159.8 |
| N.W. per lamp (g) |
37.5g |
| Accessory |
Lamp, manual,1m USB -C cable |
| Packaging |
color box |
| Carton quantity |
48 in one |
Product Application/Key Feature
Conditions
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
Accesorry
N/A
FAQ
Q: Can you offer higher lumen penlight?
A: Yes, P03DP-NC01 is 300 lumen, you can check the details under penlight series.
Q: Is it OK to do the torch with laser light?
A: Yes, it is OK to do upon requirement.
