Aluminum COB Rechargeable Pen Light Up To 300 Lumen

Short Description:

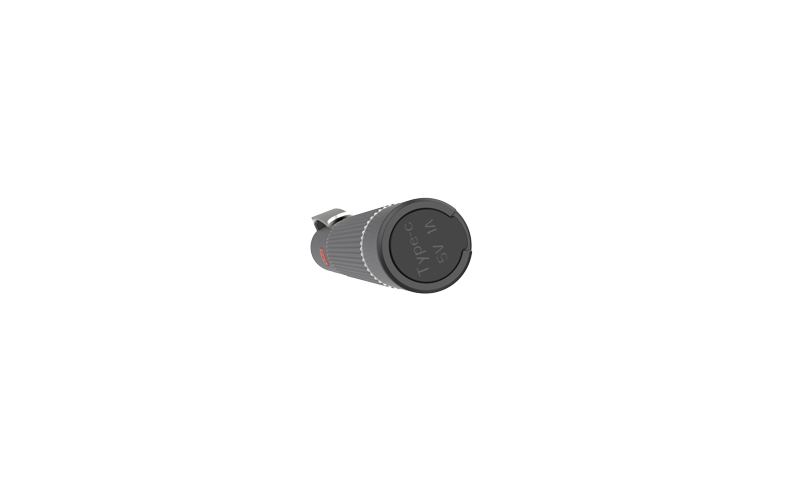

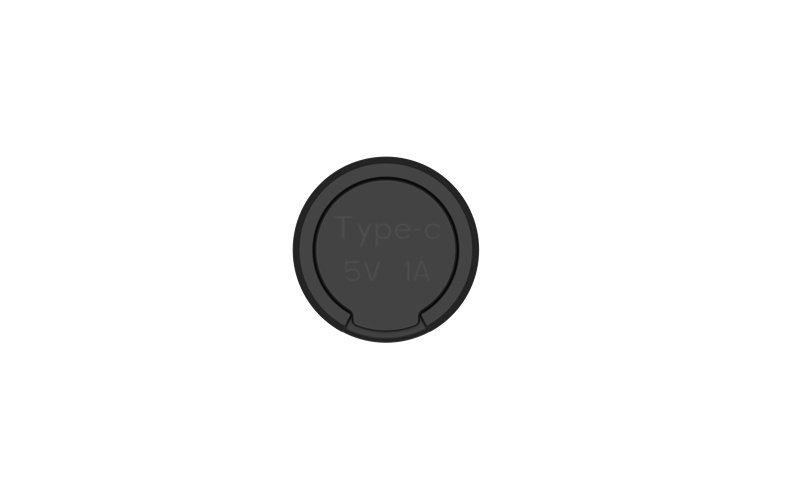

The Generation II aluminum pen light is ultra slim, the body diameter is only 14.7mm. Anti-skid vertical pattern design and a metal clip make it be more easy to hold and convenient to carry. Side on/off switch is easy to operate and can better avoid the discomfort to the eyes causing by the direct light when the work light is on. Type-C charging port is built in the lamp bottom, with cover for dust-proof.

Thanks for the good heat dissipation, it provides enough brightness, the maximum output of main light is up to 300 lumen and for torch it is 200 lumen. 5700K is closer to natural light.

The flashlight is a suitable for kinds of activities, like cycling, hiking and car checking in workshop.


Product Detail

Product Tags

Product Certificate

product-description1

Product Parameter

Art. number

P15DP-NC01

P03DP-NC01

Power source

COB (main) 1x SMD(torch)

COB (main) 1x SMD(torch)

Rated power (W)

1.5W(main) 0.9W(torch)

3W(main) 3W(torch)

Luminous flux(±10%)

150lm (main), 70lm (torch)

300lm(main) 200lm(torch)

Color temperature

5700K

5700K(main), 6500K(torch)

Color rendering index

80

80(main) 70(main)

Bean angle

100°(main) 20°(torch)

100°(main) 20°(torch)

Battery

10840 3.7V 600mAh

10840 3.7V 720mAh

Operating time(approx.)

2.5H(main) 3.5H(torch)

2.5H(@100% main)
3.5H(@50% main)
10H(@10% main)
2.5H(torch)

Charging time(approx.)

2H

2.5H

Charging voltage DC (V)

5V

5V

Charging current (A)

1A

1A

Charging port

TYPE-C

TYPE-C

Charging input voltage (V)

100 ~ 240V AC 50/60Hz

100 ~ 240V AC 50/60Hz

Charger included

No

No

Charger type

EU/GB

EU/GB

Switch function

Torch-main-off

Torch-100%-50%-10%-off

Protection index

IP20

IP20

Impact resistance index

IK07

IK07

Service life

25000 h

25000 h

Operating temperature

-10°C ~ 40°C

-10°C ~ 40°C

Store temperature:

-10°C ~ 50°C

-10°C ~ 50°C

Poduct Details

Art. number

P15DP-NC01

P03DP-NC01

Product type

Pen light

Pen light

Body casing

Aluminum+PC+PMMA

Aluminum+PC+PMMA

Length (mm)

17.3

17.3

Width (mm)

13.8

13.8

Height (mm)

160

160

N.W. per lamp (g)

42g

42g

Accessory

Lamp, manual,1m USB -C cable

Lamp, manual,1m USB -C cable

Packaging

color box

color box

Carton quantity

72 in one

72 in one

Product Application/Key Feature

Conditions

Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port

Accesorry

N/A

FAQ

Q: Whether the size and design of P15DP-NC01 and P03DP-NC01 are same?
A: Yes, the size and design is totally same, P15DP-NC01 is first version, and P03DP-NC01 is upgraded high lumen version. If you are plan to buy one, we suggest P03DP-NC01.

Q: Whether it is OK to have magnet on the body or clip?
A: As the design and material limit, it can not be..

Q: Can the body in specified color?
A: We suggest to use the normal aluminum color for the housing and red color for the switch & charging port cover.
For aluminum body, there are 4 options, silver, sliver grey, dark grey and black.

Q: Is it OK to accept quantity less than 3000pcs ?
A: Yes, but price will be different.
