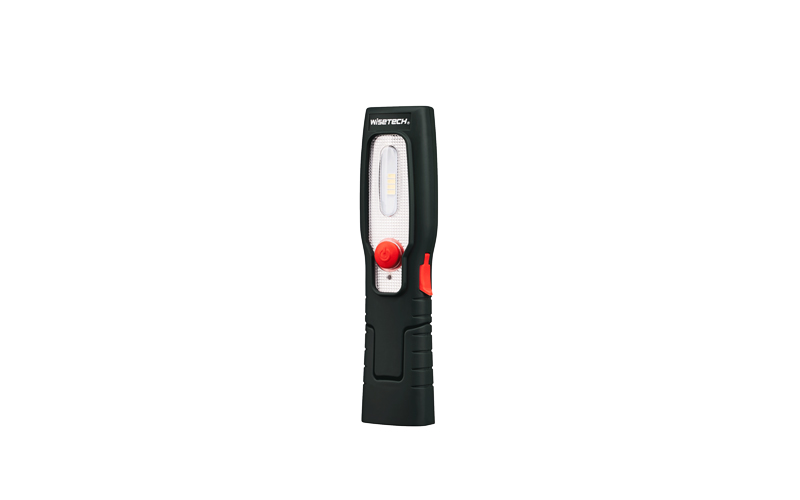

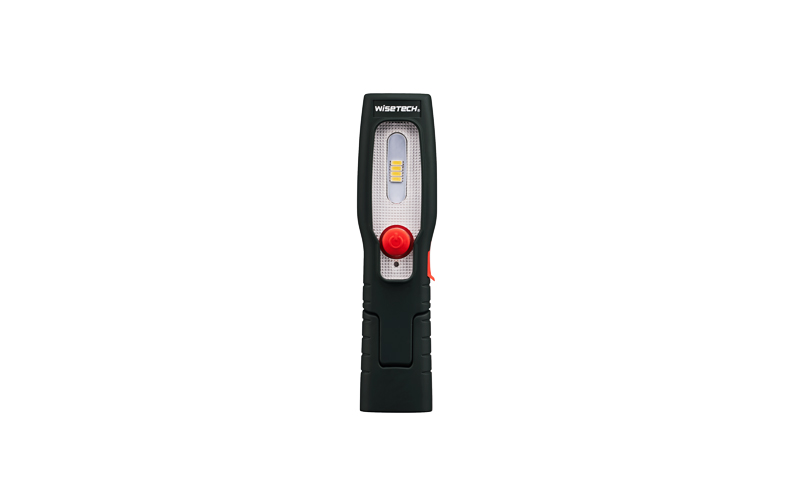

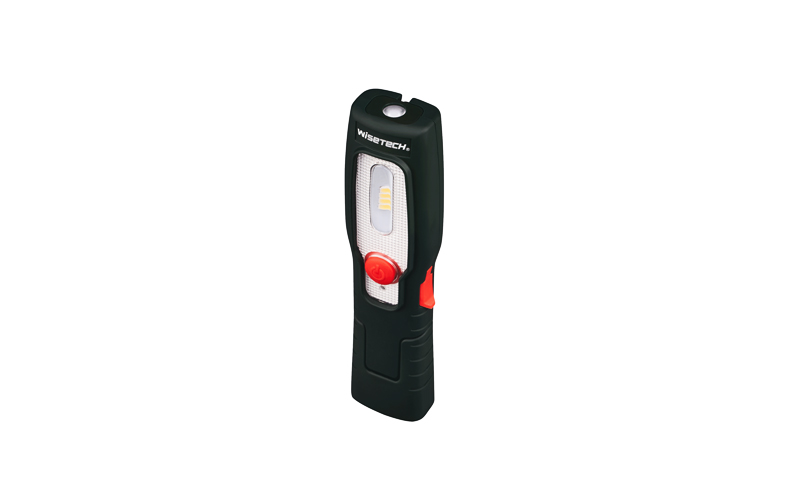

4+1 SMD Mini Flexible Hand Lamp

Short Description:

The P02MI is a mini flexible hand-held light that is easy to operate, making it a relatively basic model in many customer product lines. The housing is made of high-strength ABS plastic. The magnetic base is rotated 180 degrees vertically, and the light can be adjusted at 5 different positions.

The 4 LED on the front achieve a light output of 250 lumen, lens design makes light more focused. Top torch can be used for small place lighting.

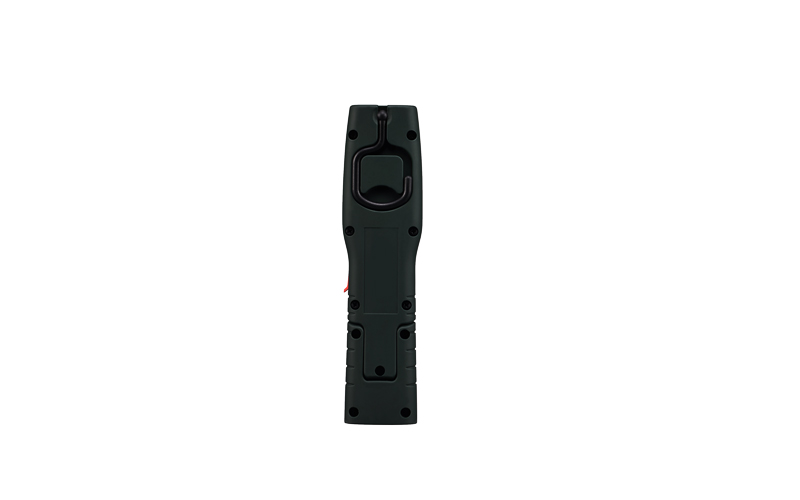

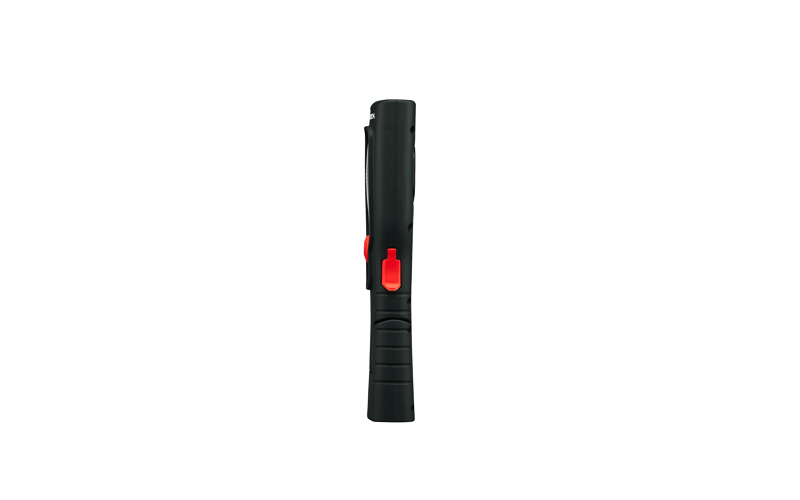

The mechanical switch realize 3 steps switch function, torch – main light – off. The red and green charging indicators are easy to identify the progress of charging. There is a built-in USB charging port on the side for charge the lamp by the supplied USB cable. The back hook can be rotated 360°.


Product Detail

Product Tags

Product Certificate

product-description1

Product Parameter

Art. number

P02MI-N01

Power source

4 x SMD (main) 1 x SMD(torch)

Rated power (W)

2.5W(main) 1W(torch)

Luminous flux(±10%)

250lm(main) 70lm(torch)

Color temperature

5700K

Color rendering index

80

Bean angle

90°(main) 18°(torch)

Battery

14650 3.7V 1000mAh

Operating time(approx.)

3.5H(main) 6H(torch)

Charging time(approx.)

2.5H

Charging voltage DC (V)

5V

Charging current (A)

1A

Charging port

Micro USB

Charging input voltage (V)

100 ~ 240V AC 50/60Hz

Charger included

No

Charger type

EU/GB

Switch function

Torch-main-off

Protection index

IP20

Impact resistance index

IK07

Service life

25000 h

Operating temperature

-10°C ~ 40°C

Store temperature:

-10°C ~ 50°C

Poduct Details

Art. number

P02MI-N01

Product type

handlamp

Body casing

ABS+PC+PMMA

Length (mm)

47.1

Width (mm)

30

Height (mm)

186.1

N.W. per lamp (g)

130g

Accessory

Lamp, manual,1m USB-Micro USB cable

Packaging

color box

Carton quantity

25 in one

Product Application/Key Feature

Conditions

Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port

Accesorry

N/A

FAQ

Q: Whether rear side has magnets?
A: No magnet in the rear side, but base bottom has magnet.

Q: To put the switch button on the front will hurt eyes when lamp is on?
A: To avoid the issue, turn the light source away from your eyes when turning on the light. We have added the operation instruction in the manual.
