3000lumen 5000lumen 8000lumen Construction Frosted Flood Light PRO Rechargeable

Short Description:

Generation II construction frosted flood light PRO introduced a new rechargeable series, including 3000 lumen, 5000 lumen, 8000 lumen, 10000 lumen and 15000 lumen versions. The robust housing consists of ABS, ABS plus Aluminum, 4 corners with TPR protection, separate handle and bracket, the aim is to offer a professional working lights for craftsman.

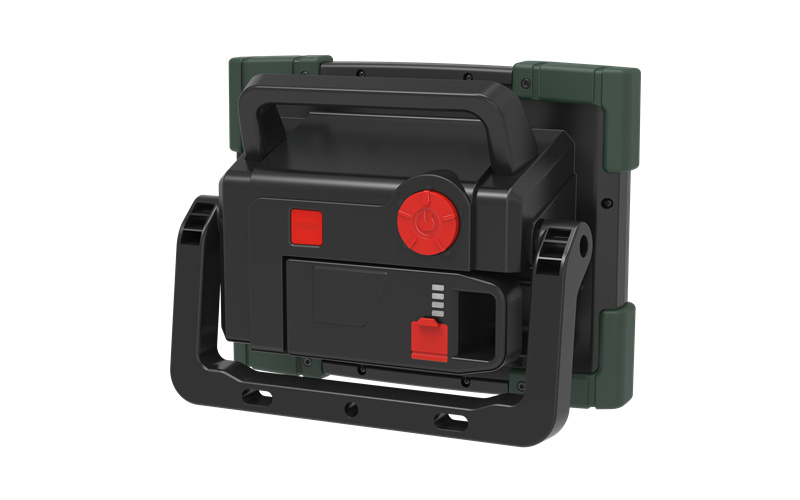

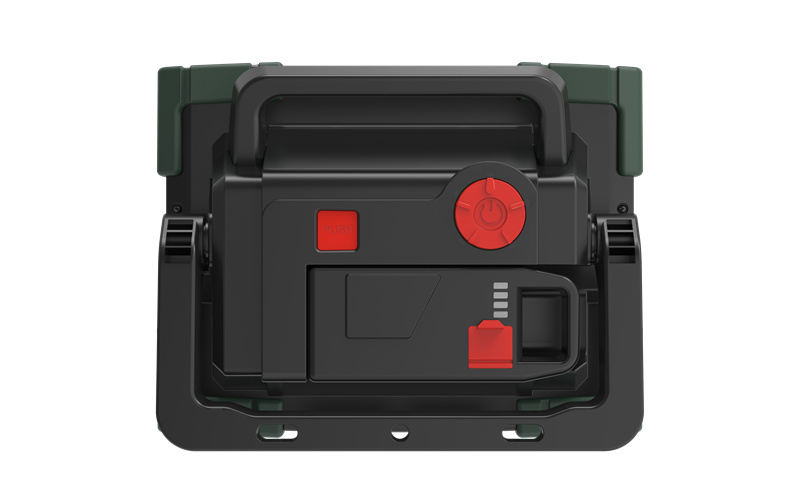

This series introduces battery pack design, the goal is to facilitate the craftsmen to extend the use time by spare battery pack when needed. Press the bayonet switch to pull out the battery pack and push the another pack into its position.

Push the switch button to on/off the work site light, turn the switch button to change the different lumen levels. The USB output can supply power for other mobile devices. Battery indicator help you to follow the battery volume status and charging status.

Send email to us

Product Detail

Product Tags

Product Certificate

Product Parameter

Art. number	S30PF-CS01	S50PF-CS01	S80PF-CS01
Power source	72 x SMD 2835	96 x SMD 2835	168 x SMD 2835
Rated power (W)	30	50	80
Luminous flux(±10%)	3000lm	5000lm	8000lm
Color temperature	5700K
Color rendering index	80
Bean angle	117°	117°	117°
Battery	18650 11.1V 2600mAh	21700 11.1V 4500mAh	21700 11.1V 4500mAh
Operating time(approx.)	2.5H@3000lm	2.5H@5000lm	2H@8000lm
Charging time(approx.)	3.5H	3.5H	3.5H
Charging voltage DC (V)	12.6V	12.6V	12.6V
Charging current (A)	1.4A	1.4A	1.4A
Charging port	DC	DC	DC
Charging input voltage (V)	100 ~ 240V AC 50/60Hz
Charger included	Yes	Yes	Yes
Charger type	EU/GB
Switch function	on-off, turn switch button for 10%-100%
Protection index	IP65
Impact resistance index	IK08
Service life	25000 h
Operating temperature	-10°C ~ 40°C
Store temperature:	-10°C ~ 50°C

Poduct Details

Art. number	S30PF-CS01	S50PF-CS01	S80PF-CS01
Product type	Frosted flood light PRO
Body casing	ABS+PC+TRP
Length (mm)	261
Width (mm)	128
Height (mm)	201
N.W. per lamp (g)	1370	1370	1505
Accessory	Lamp, manual
Packaging	color box
Carton quantity	4 in one

Conditions

Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port

Accesorry

2 meter tripod, one and two ends

FAQ

Q: What is the maximum output the the USB socket?
A: it is 5V 2A, normally you can charge the mobile phone, bluetooth speaker. etc.

Q: How to judge the battery volume?
A: When you turn on the light, the indicator will light on. The more LEDs are on, the more power the battery has.

Q: How to charge the working light?
A: Charge the battery pack through the DC charging port by the supplementary mains adaptor.
