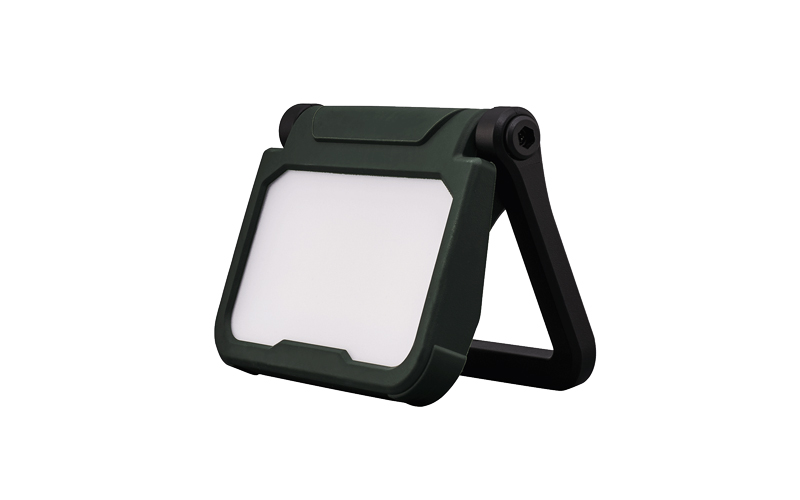

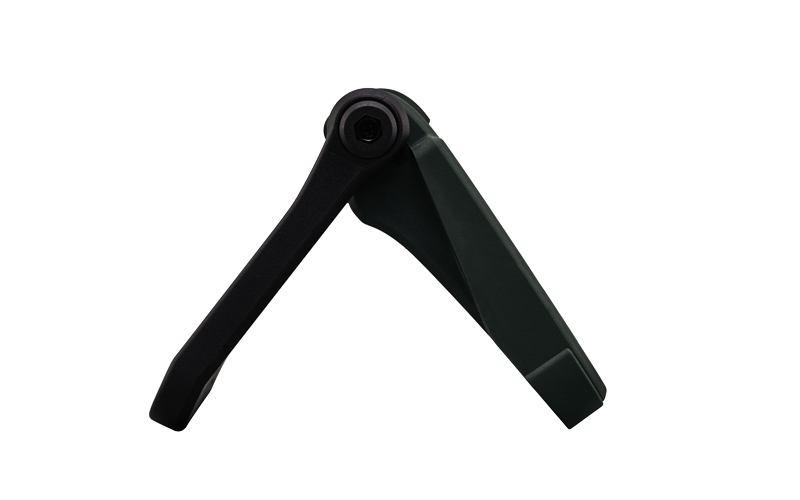

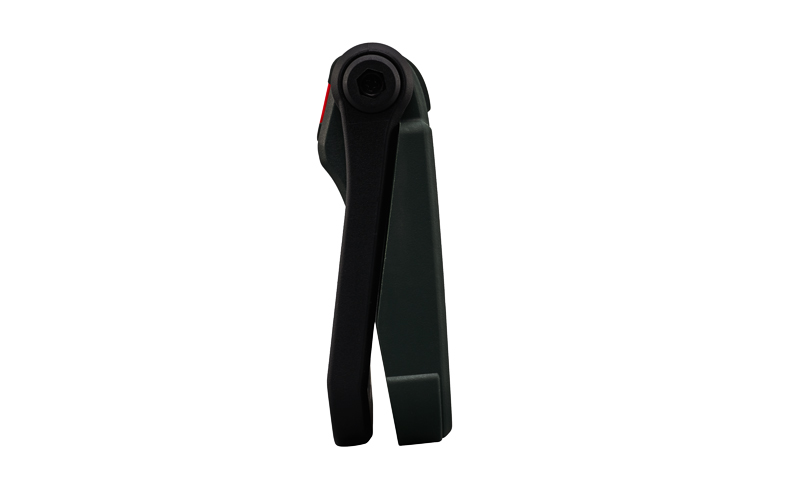

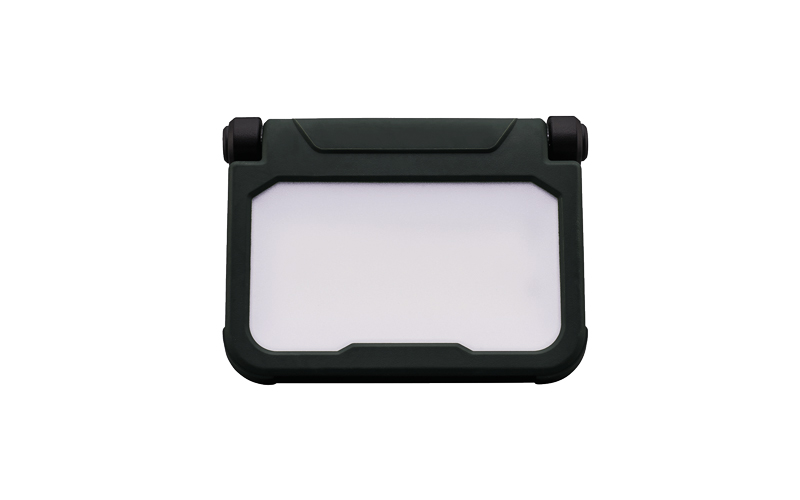

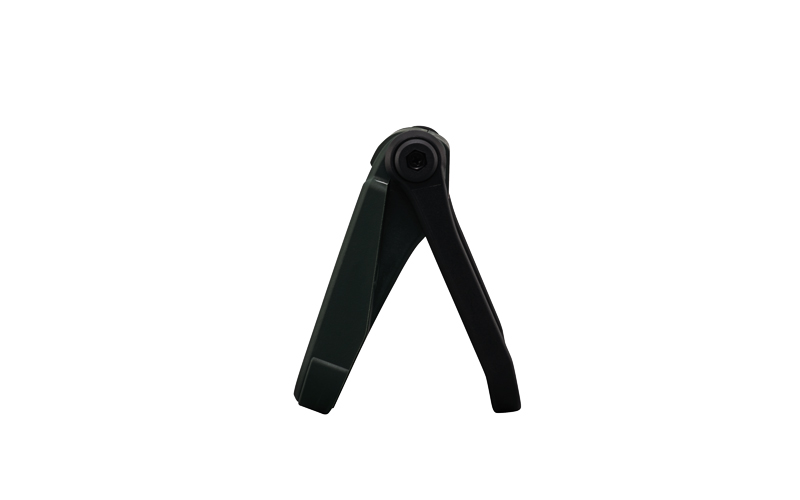

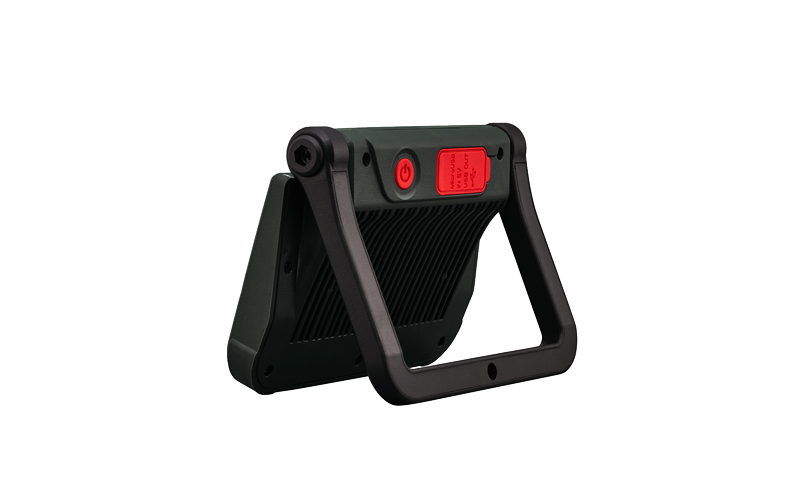

2000lm 3000lm IP65 Rechargeable Frosted Flood Light ECO

Short Description:

LED panel frosted flood light ECO provides very homogeneous light distribution. Luminaire panel can be swiveled 30 degrees, 60 degrees, 90 degrees and 116 degrees. The integrated bracket and handle saves the packaging size and delivery cost. This mobile working light can be used in areas of application, like renovation. workshop, etc.

The mobile cordless work light use the latest SMD chip technology. S20DF-N01A has 2 levels to choose from and S30DF-CS01 has 4 levels to choose from, enable 2.5 to 6 hours of light duration. Combined with the power bank function for other devices as emergency function.

Send email to us

Product Detail

Product Tags

Product Certificate

Product Parameter

Art. number	S20DF-N01A	S30DF-CS01
Power source	55 x SMD 2835	66 x SMD 2835
Rated power (W)	20	27
Luminous flux(±10%)	1000lm/2000lm	750lm/1500lm/2250lm/3000lm
Color temperature	5700K
Color rendering index	80
Bean angle	117°	117°
Battery	18650 3.7V 8000mAh	Li-ion 3.7V 7800mAh
Operating time(approx.)	2.5H@100%, 5H@50%	2.5H@100%, 3.5H@75% 4.5H@50%, 6H@25%
Charging time(approx.)	4H	3H
Charging voltage DC (V)	5V	5V
Charging current (A)	3A	3A
Charging port	TYPE-C	TYPE-C
Charging input voltage (V)	100 ~ 240V AC 50/60Hz
Charger included	No	No
Charger type	EU/GB
Switch function	50%-100%-off	100%-75%-50%-25%-off
Protection index	IP65
Impact resistance index	IK08
Service life	25000 h
Operating temperature	-10°C ~ 40°C
Store temperature:	-10°C ~ 50°C

Poduct Details

Art. number	S20DF-N01A	S30DF-CS01
Product type	Frosted flood light ECO
Body casing	ABS+PC+TRP
Length (mm)	204
Width (mm)	52
Height (mm)	208
N.W. per lamp (g)	675	625
Accessory	Lamp, manual,1m USB -C cable
Packaging	color box
Carton quantity	4 in one

Conditions

Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port

Accesorry

2 meter tripod

FAQ

Q: Logo position?
A: An engraved logo in the middle of top casing or a silk printing logo on the PC plate.

Q: Quantity less than MOQ is OK?
A: We can do special support, you can contact our sales for further details.

Q: Can the mass production leading time be shorter?
A: It depends on the order quantity, our order production schedule, but we will do our utmost.
